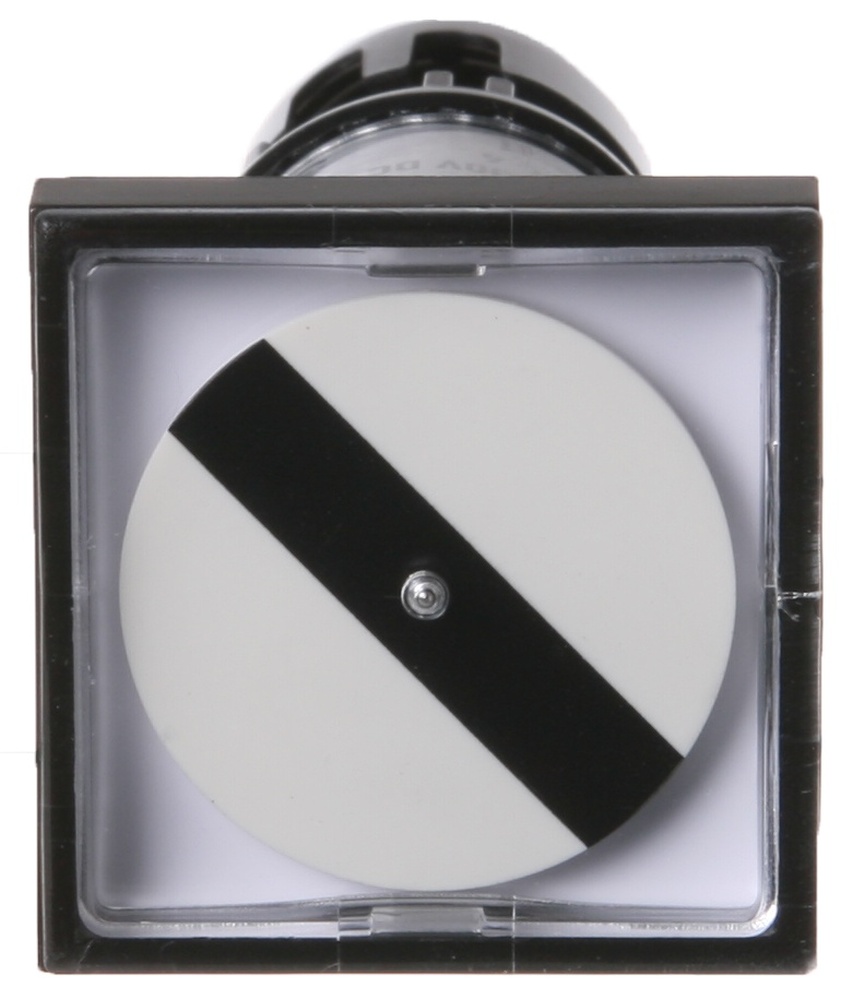

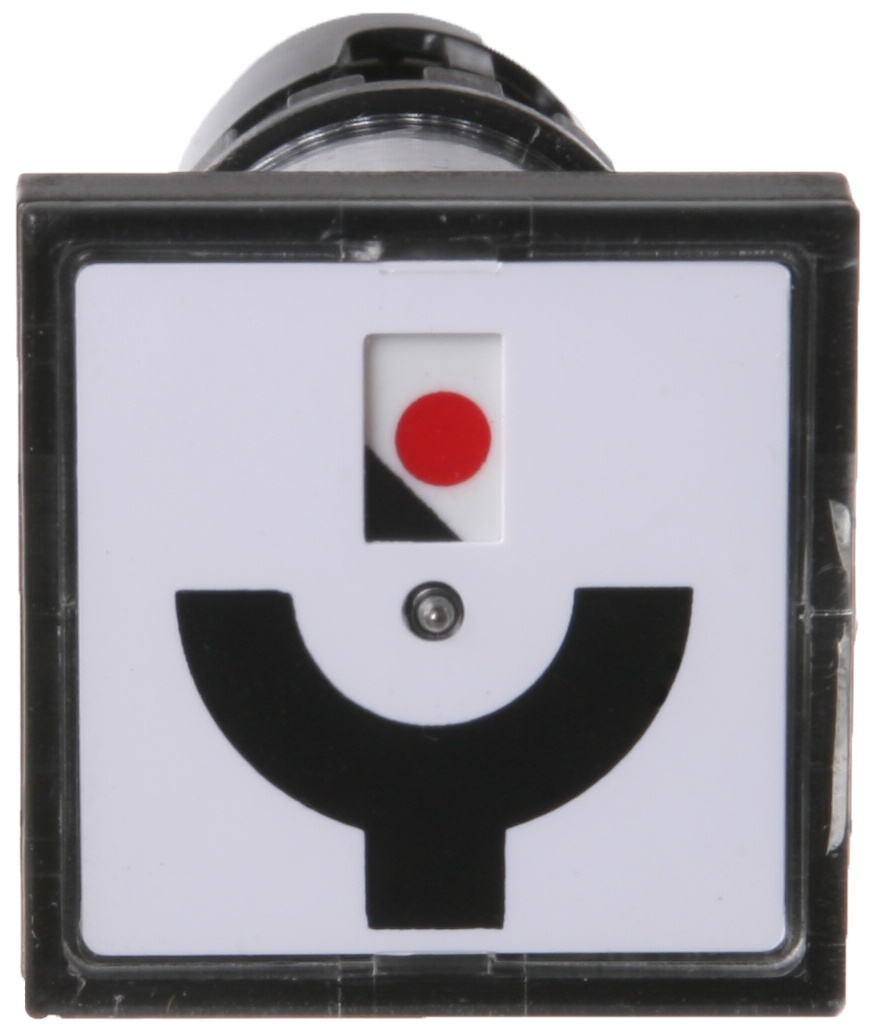

PI 36 - for direct current
-36-1.jpg)
-36-1_120x120.jpg)
-36-1.jpg){kind=link}
-36-5_120x120.jpg)
-36-5.jpg){kind=link}
Description
Description
position indicator for direct current
Technical Data
| Type | DC | PI 36 |
| Front Flange | mm | 36x36 |
| Housing | dia mm | 21,8 |
| Voltage | DC | 24-230V |
| Test voltage | kV | 3,7 |
| Power consumption | W 110/230V | 0,4/1,4 |
| Weight | kg | 0,1 |
Downloads
de-Liste-Ergaenzungskomponenten.pdf (from page 28)
