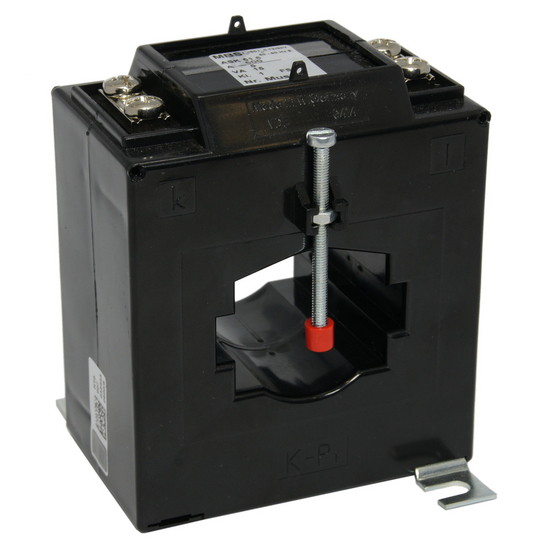

SASK 51.6


Description

Protection plug-in current transformers for primary nominal currents from 150 A up to 1000 A, secondary nominal current 5 A or 1 A (optional 2A) in protection class 5P5, 10P5, 5P10 and 10P10.

Technical Data

Therm. nominal continuous current I_cth: 1,2 x I_N
Therm. nominal short-time current I_th: 60 x I_N, 1 sec.
Max. operating voltage U_m: 0.72 kV
Isolation test voltage: 3 kV, U_eff, 50 Hz, 1 min.
Nominal rated frequency: 50...60 Hz
Isolation class: E

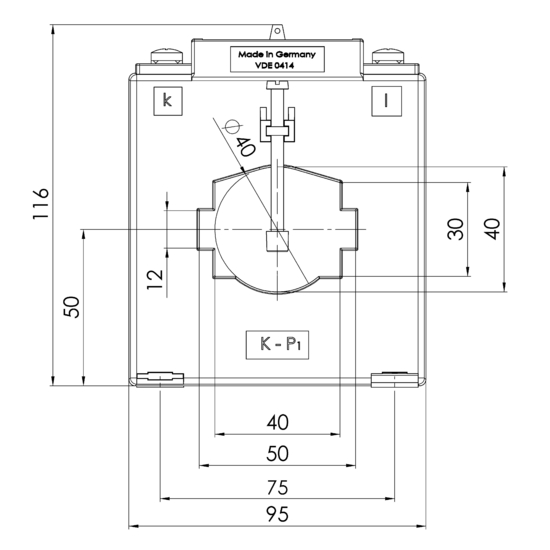

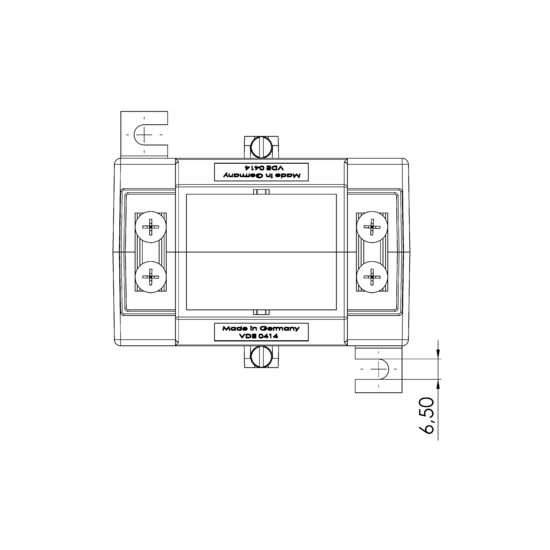

Bus bar 1: 50 x 12 mm
Bus bar 2: 40 x 30 mm
Round conductor: 40 mm
Width: 95 mm
Height: 116 mm

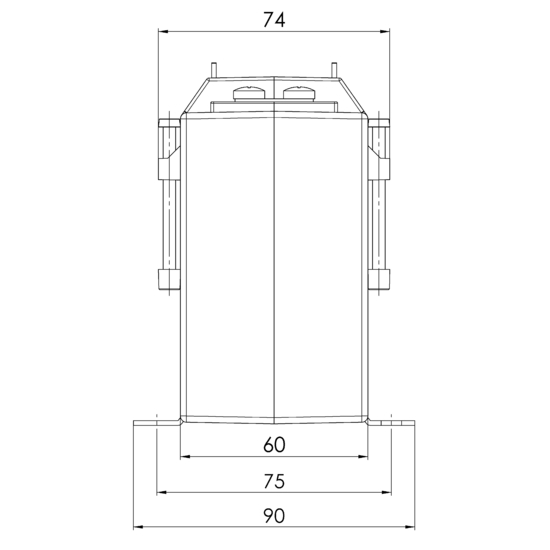

Depth: 74 mm
