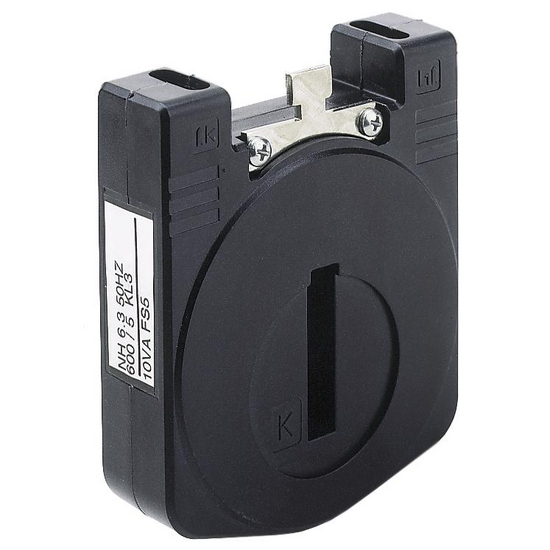

NH 6.3

PDF
Description

Description

Current transformers for fuse rails for primary nominal currents from 150 A up to 600 A, secondary nominal current 5 A or 1 A, accuracy class 3.

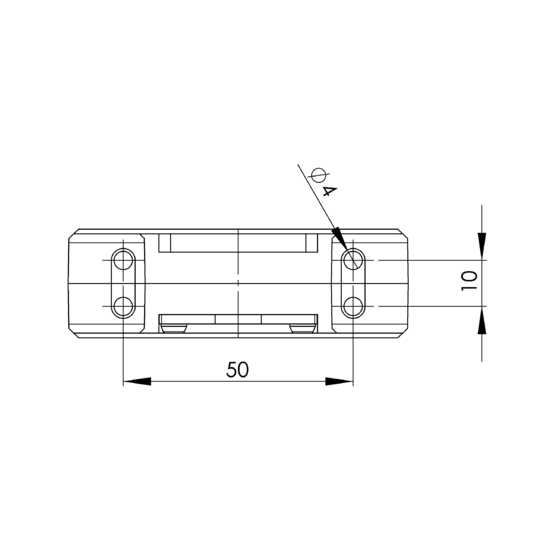

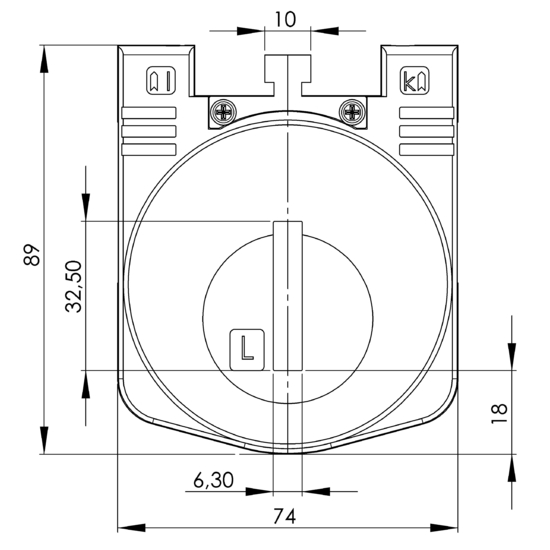

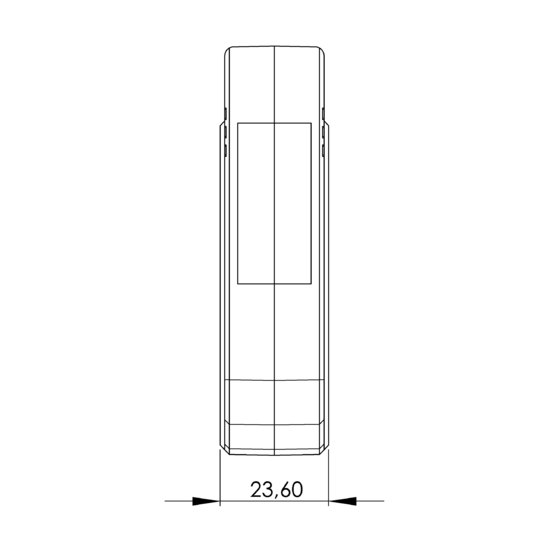

Technical Data

  • Bus bar 1: 32 x 6 mm
  • Width: 74 mm
  • Height: 89 mm
  • Depth: 24 mm
