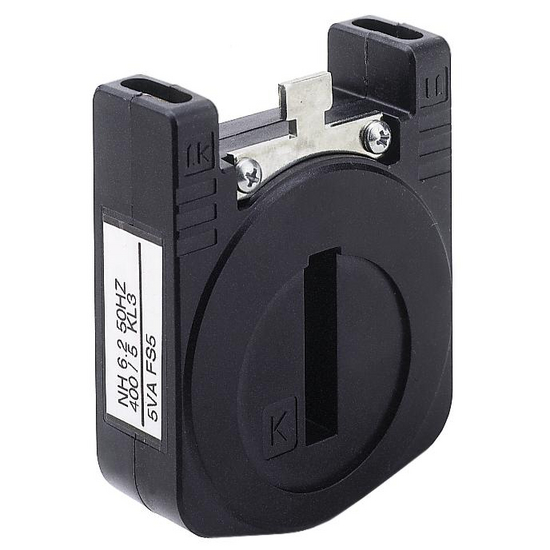

NH 6.2 2U

PDF
Description

Description

Secondary change-over current transformers for fuse rails for primary nominal currents from 200-100 A up to 400-200 A, secondary nominal current 5 A or 1 A, accuracy class 3.

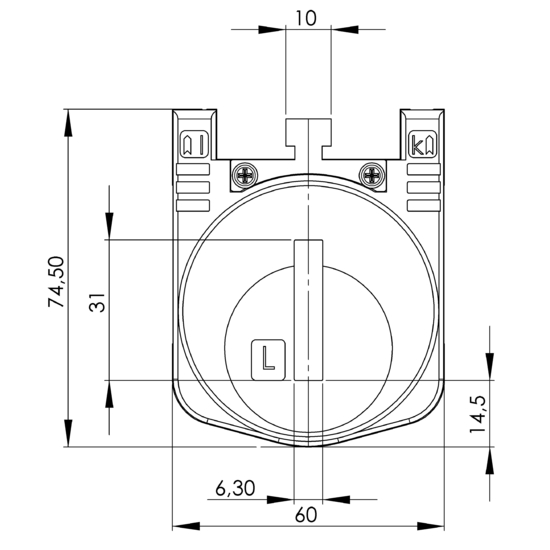

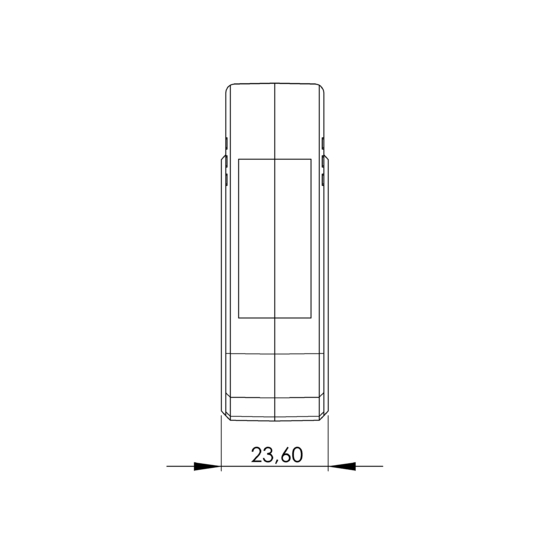

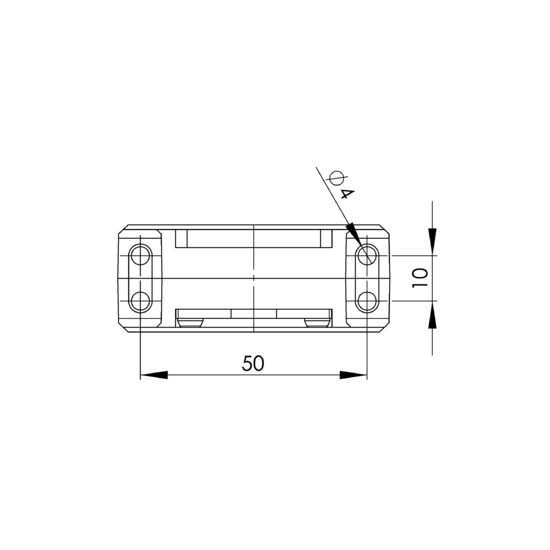

Technical Data

  • Bus bar 1: 30 x 6 mm
  • Width: 60 mm
  • Height: 74,5 mm
  • Depth: 24 mm
