DIN rail adapter for panel instruments

PDF
Description

Description

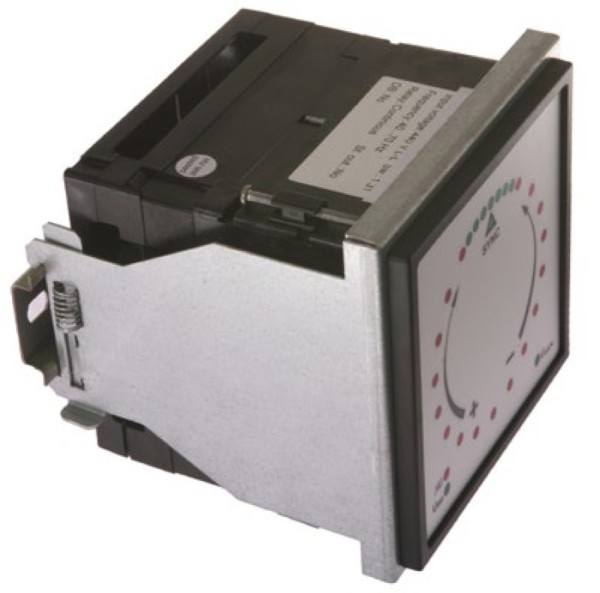

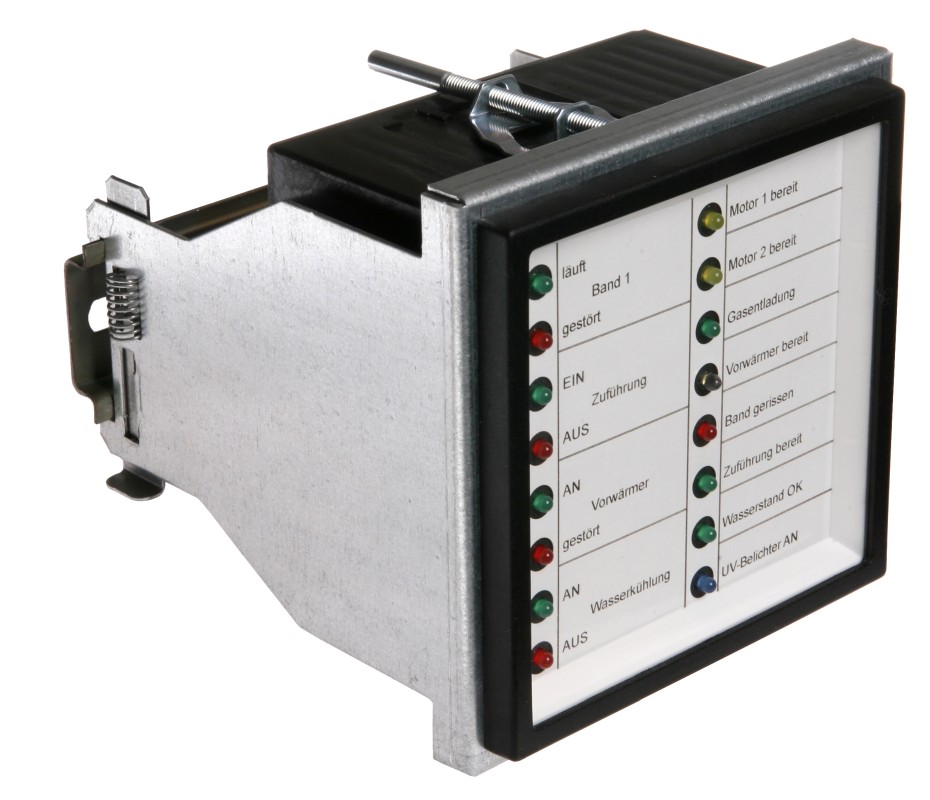

  • The DIN rail adapter is used to mount panel instruments in accordance with IEC 61554 DIN onto a TS35 DIN EN 60175 rail (DIN rail)
  • Quick and easy installation

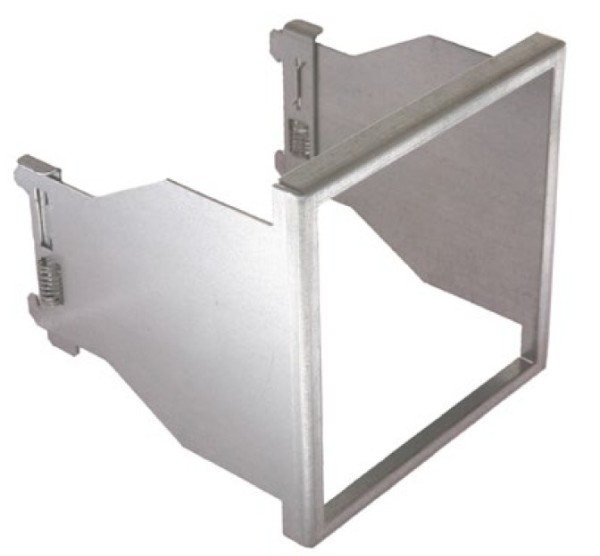

  • Galvanized steel adapter

Technical Data

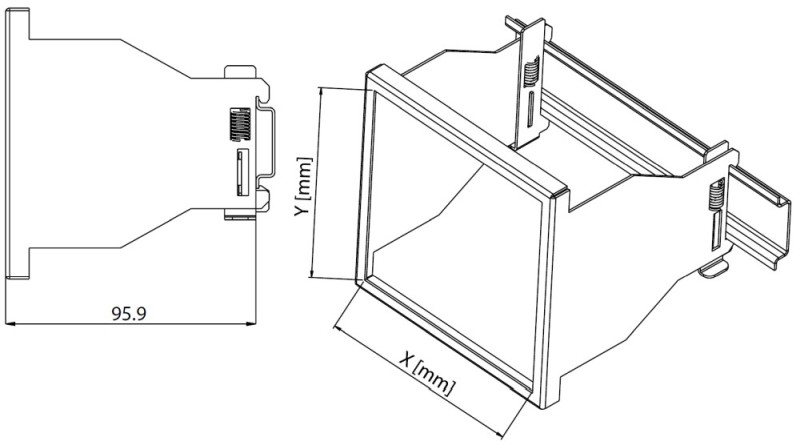

available dimensions [X x Y]:

  • 96 x 96 mm Order code 7000ATS100
  • 96 x 48 mm Order code 7000ATS200
  • 72 x 72 mm Order code 7000ATS300
  • 48 x 96 mm Order code 7000ATS400
  • 48 x 48 mm Order code 7000ATS500

Downloads

de-Datenblatt-Tragschienenadapter.pdf
