FLM 48 8.2 5mm 24V AC/DC

Description

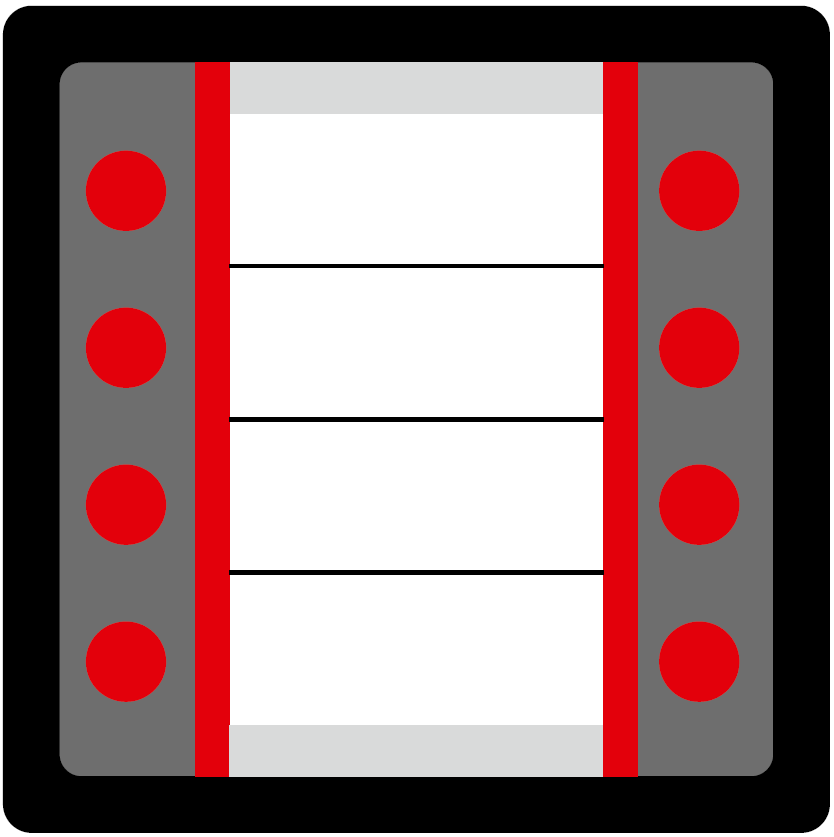

FLM Indicator panel for optical signalling. The respective LED directly indicates the status of the input signal. The unit has a collective alarm output and a lamp test input. The FLM version has transparent pockets instead of a formica plate (LM) into which labelling texts can be inserted.

Model FLM 48 8.2 5mm 24V AC/DC

Part Number 900300832

Housing Size 48

Number of Notifications 8

Layout 2

Front Panel Transparent Pocket

Operating Signals no

Profibus no

Technical data

Type

FLM

Standard Supply Voltage

none

Power Consumption

Voltage

24V AC/DC

Input Current per Channel

ca. 5mA

Contact Rating "SM"

0,1A*

LED Size

5mm

Terminal Description

Input "1-X"

Signal inputs

Input "N"

Common ground terminal

Input "LP"

Lampt test input

Output "SM"

Non-isolated collective output*)

*) Please note:

Collective signal output SM:The required output current must be provided by the active signal inputs. With AC voltage signals, only the positive half-wave is output. Inductive loads, such as auxiliary contactors, must be wired with suitable RC combinations to avoid overvoltages.
