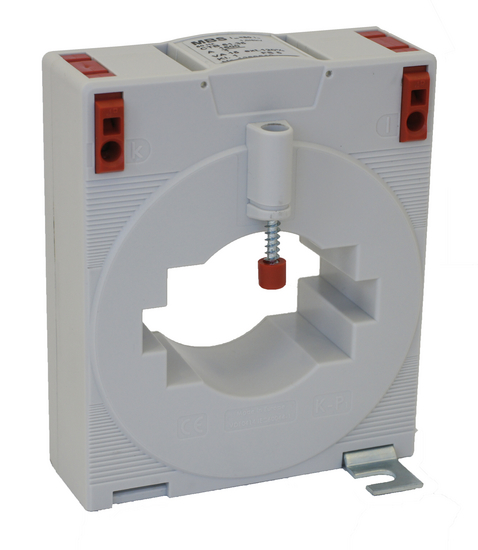

CTB 61.35 200/5A 2,5VA Kl.1

Wandler CTB 61.35 200/5A 2,5VA Kl.1
Frontview CTB 61.35 200/5A 2,5VA Kl.1
Sideview CTB 61.35 200/5A 2,5VA Kl.1
Topview CTB 61.35 200/5A 2,5VA Kl.1
1. Zusatzbild CTB 61.35 200/5A 2,5VA Kl.1
PDF-Export

Description

CTB
Model CTB 61.35 200/5A 2,5VA Kl.1
Part number 50-0150
Class 1
VA 2,5
Category Plug-in current transformers
Prim. Current 200
Sec. Current 5

Technical data

Therm. Nominal Continuous Current Icth
1,2 x IN
Therm. Nominal Short-Time Current Ith
60 x IN, 1 Sek.
Max. Operating Voltage Um
1,2 kV
Insulation Test Voltage
6 kV, Ueff, 50 Hz, 1 Min.
Nominal Frequency
50…60 Hz
Insolation Class
E
Bus Bar 1
63 x 10 mm
Bus Bar 2
50 x 30 mm
Round Conductor
43.7 mm
Width
95 mm
Height
114.86 mm
Depth
52 mm
