ASK 165.5 1000/5A 5VA Kl.0,2

1. Zusatzbild ASK 165.5 1000/5A 5VA Kl.0,2

PDF-Export

Description

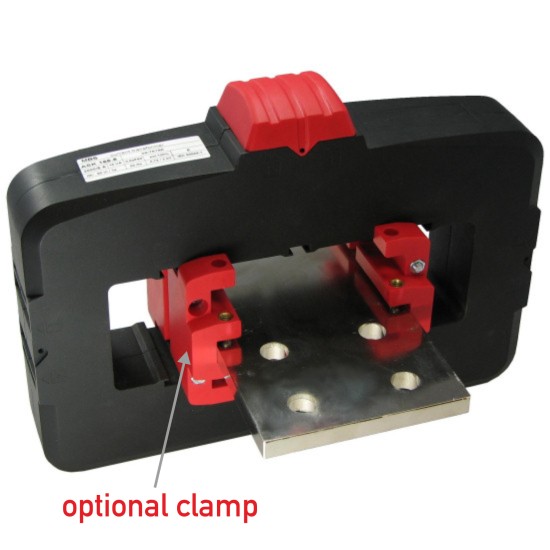

ASK Plug-in current transformer, for primary nominal currents from 30 A to 7500 A, secondary nominal currents for 5 A or 1 A, optional dual or triple secondary switchable, available in classes 0.2s, 0.5 and 1, without primary conductor, but with foot bracket, isolator protection cap and bus bar mounting screws, alternatively with chrome-plated copper bus bar conforming to the bus bar window, inclusive of screws DIN 933 complete with nuts, washers and springs for the mounting onto bus bars or similar components

Model ASK 165.5 1000/5A 5VA Kl.0,2

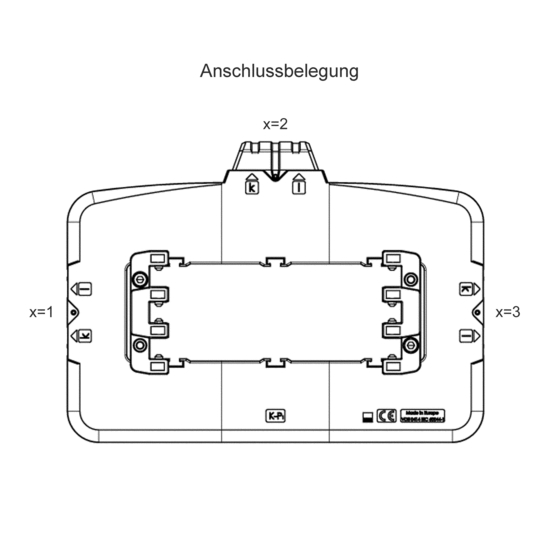

Part number 1650003001-x

Class 0,2

VA 5

Category Plug-in current transformers

Prim. Current 1000

Sec. Current 5

Technical data

Therm. Nominal Continuous Current Icth

1,0 x IN

Therm. Nominal Short-Time Current Ith

60 x IN, 1 Sek.

Max. Operating Voltage Um

0,72 kV

Insulation Test Voltage

3 kV, Ueff, 50 Hz, 1 Min.

Nominal Frequency

50…60 Hz

Insolation Class

Bus Bar 1

190 x 60 mm

Bus Bar 2

3 x 160 x 10 mm

Round Conductor

- mm

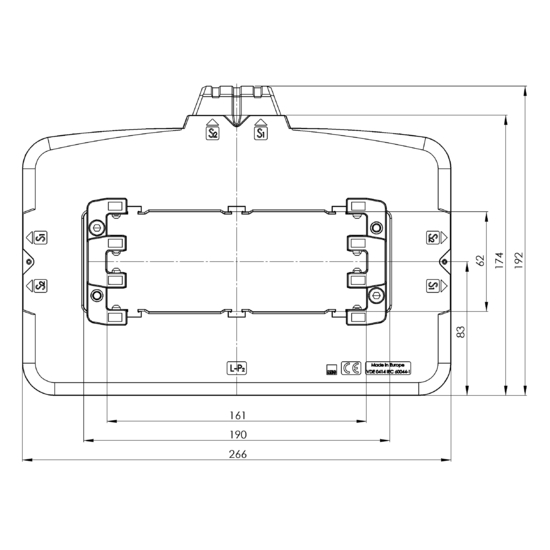

Width

266 mm

Height

192 mm

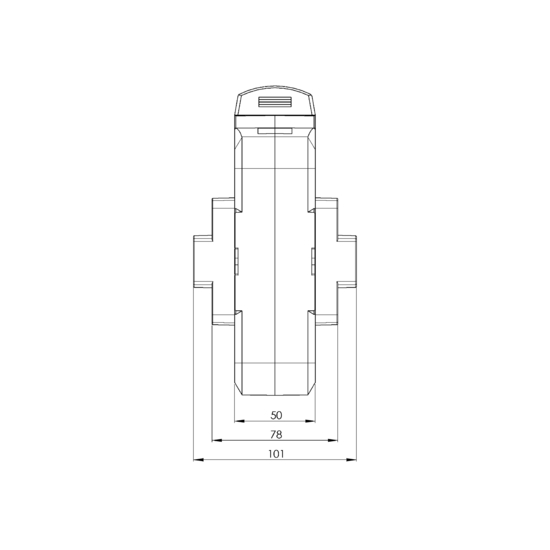

Depth

100 mm
